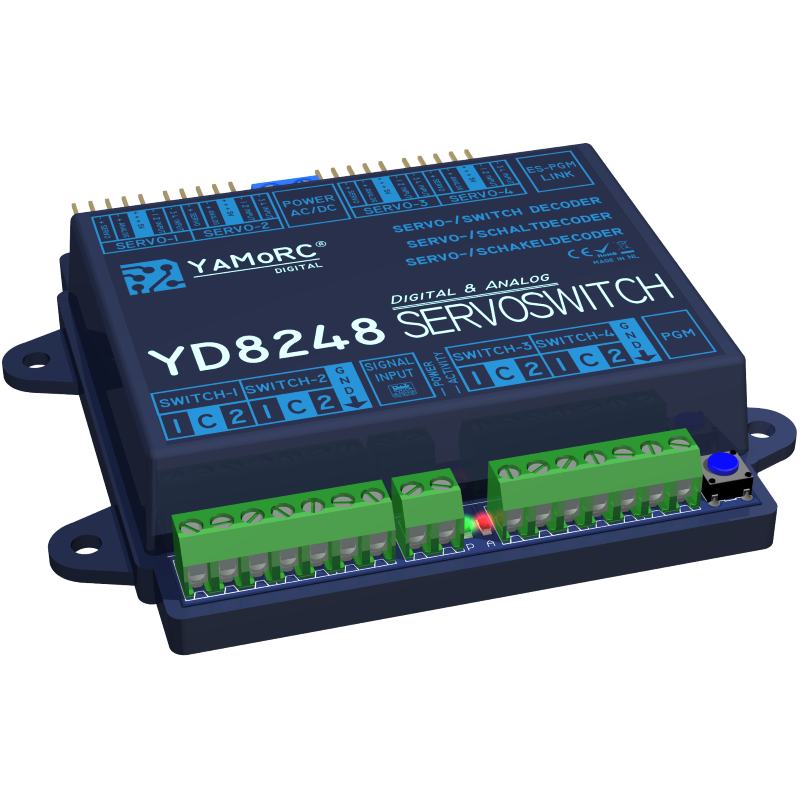

YAMORC YD8248 Schakeldecoder 4x Servo + 8x Signal/On-Off

The YaMoRC solution for operating RC-Servos.

It presents the following features:

4 Servo connections in standard configuration, each servo has:

Analog input for position and/or configuration

4 Digital Inputs for analog/conventional control of up to 4 positions. ( no need of a digital command station !! )

Selectable servo travel: 90 or 180 degrees. Supports 90'and 180' servos.

Up to 4 Frog polarization relays ( option Adapter YD8290 ) for the 4 Standard Servos

Frog polarization by 2 independent relays, both are off while servo moving to prevent short circuits on "difficult" turnouts.

up to 12 Servos in total by using option Adapter YD8291

Eight independent 2.5Amp MOSFET auxiliary outputs

selectable "common-voltage" between 5V or the rectified input voltage.

Max 2.5 Amp combined current.

Complete aspect configuration like in our YD8116

Very simple basic-setup (base address), by pressing the programming button and switching the desired turnout address

No complicated CV settings.

Clear-text configuration based upon our new ES-Link technology.

using the classic Windows PC interface, the YD9100 config-USB-stick

as well as our YD6016LN/RB and ...

as well our YD7001 and YD7010 Command Stations can provide the configuration

All of the 8 outputs are freely configurable from 8x simple on-off to complex and elaborate signals with up to 8 LEDs/lamps.

Each defined device (Servo, Signal, Switch, Turnout) can have its own address

Devices/Servos can be operated by the new DCCext standard or conventional turnout DCC-commands (throw/close)

Not suitable for solenoid point motors. For these motors, use our YD8008/YD8044.

The auxiliary outputs are also very suitable for motorized point motors. For two-wire motorized point motors, like Conrad; Hoffmann; Tillig; etc. adapter YD6940 should be used.
