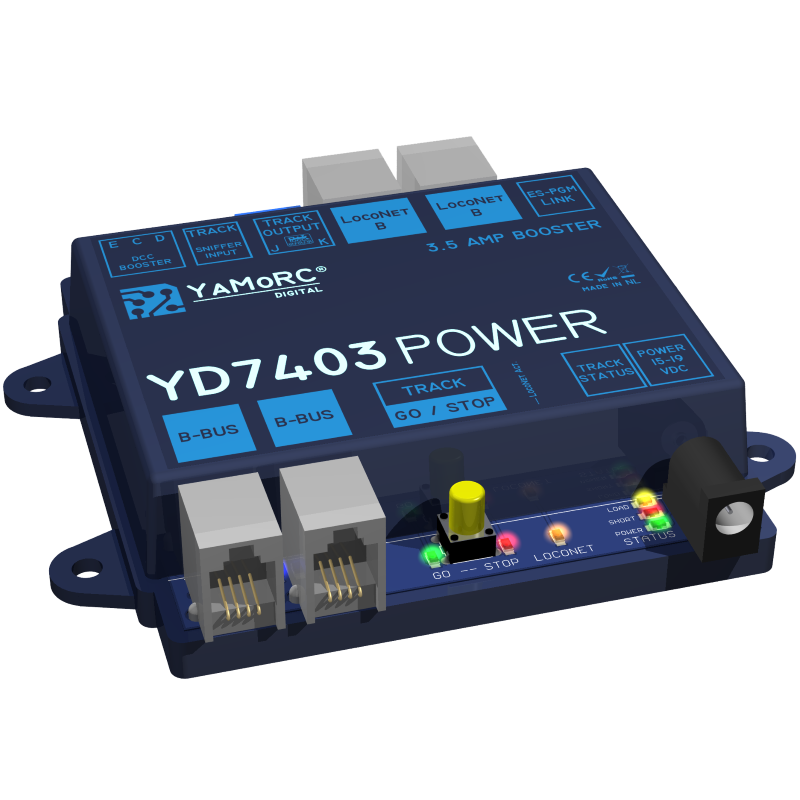

YAMORC YD7403 Booster

The power-house of the YD7x family,

It presents:

Universal 3.5 Amp booster.

Fully galvanically isolated on all, defacto industry standard inputs:

LocoNet B

Roco B-BUS

DCC-CDE

Track Sniffer

Automatic input selection

LED indication of currently active input

Local GO / STOP button to start/stop the booster, or reset in case of local short circuit

Follows input RailCom Cut-Out to it's output

ES-PGM-LINK for easy configuration

Power:

Input 15-19 V DC

Output 3.5 A peak current, 2.75 A continuous.

Short circuit protected

Automatic short-report over LocoNet, CDE channel or BBus interface.

H-Bridge Temperature measurement

Track-Current measurement

Input- and Track Voltage measurement
