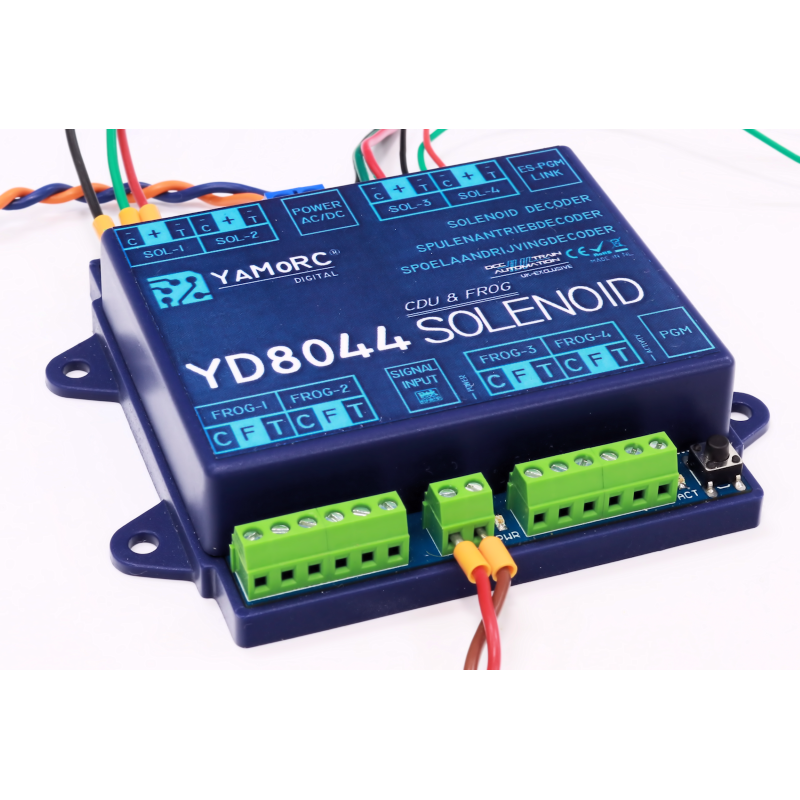

YAMORC YD8044 Wisseldecoder (spoelen) 4 voudig met puntstuk schakeling

Specially designed to cope with, high-current, solenoid point-motors, the YD8044 is our 4-fold solenoid decoder with CDU and Frog Supply.

It presents the following features:

Four independent 9.5Amp solenoid outputs

Smart, 9400 uF CDU, monitoring charge levels for safe and powerful switching

Only 380 mA power consumption during charging

Frog polarization through a 2 Amp relay which switches together with the solenoid outputs

Very simple basic-setup (base address), by pressing the programming button and switching the desired turnout address

No complicated CV settings.

Clear-text configuration based upon our new ES-Link technology.

With our YD9101-Config or YD7100-Command, configuration can be done via built-in web interface. No need for PC-software or Phone/Tablet Apps !

- or -

when using the classic Windows PC interface, the YD9100 config-USB-stick as well as our YD6016LN can provide the configuration.

Four address to output mappings, each mapping can a free choice address which can switch any and every output

Sequential output activation based upon pulse time and CDU charge level.

CDU startup delay adjustable to prevent tripping short circuit protection in boosters

Very modest power supply requirements. Even for SEEP/Gaugemaster motors a 15V/500mA wall wart is more than enough.

Not suitable for motorized point motors. For these motors, use our YD8116. This also counts for MTB point motors.

For two-wire solenoid motors, like Kato, adapter YD6940 should be used.
